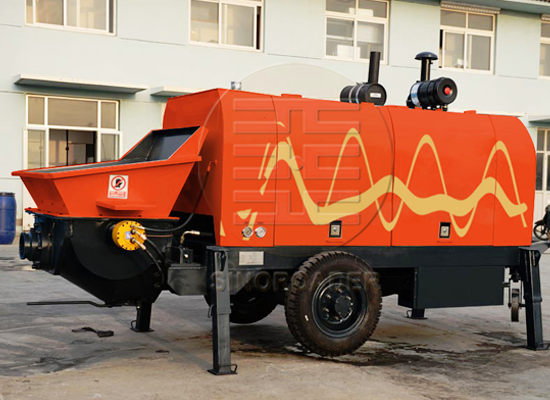

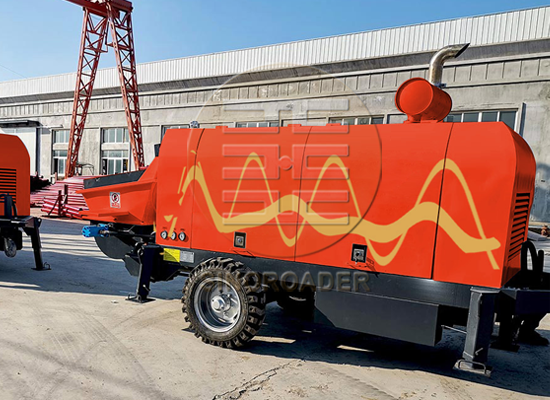

China Concrete Pump manufacturer-Trailer Concrete Pump HBTS60-12-82R
Model
HBTS40-12-82R
HBTS60-12-82R
HBTS80-13-129R
Capacity
40/26m3/h
60/36m3/h
84/45m3/h
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

The high-pressure concrete pump has a wide range of applications, construction sites, house construction, canal pouring, subway tunnels, high-rise transportation, road hardening, etc., reducing labor costs, saving time, labor and materials, and meeting different market needs.

Reliable

1.Reliable configuration: all parts and components have passed the site assessment of certificates, including the core components of the motor, main pump, and main cylinder.

2.The implementation of adaptive pumping control technology reduces the blockage rate by 50%

High configuration

1.Imported Kawasaki main oil pump with strong power;

2.Integral molding hopper, no material accumulation;

3.Manual and automatic hydraulic control lubrication;

4.Schneider, Omron electrical solutions;

5.The dual-circuit hydraulic system effectively enhances power and reduces oil temperature.

Save money

1.The wearing parts are cost-effective, far surpassing competitors;

2.The implementation of adaptive pumping control technology reduces the pipe blockage rate of the drag pump by 50%.

3. The unique distribution oil circuit buffer technology ensures that the S tube swings in place and prolongs the service life of the S tube.

Items HBTS40 HBTS60 HBTS80
Max. theo. concrete output(L./H) M3/h 40/26 67/45 84/45
Max.concrete pumping pressure(H./L.) MPa 10/7.6 13/7 16/11

Max. Theoretical Vertical

Conveying Distance

m 120 180 200

Max. Theoretical Horizontal

Conveying Distance

m 500 800 800
Inside diameter of delivering pipe mm Φ125 Φ125 Φ125
Dimensionslength×width×height mm 5000x1850x1700 5800x2000x1750 6300x2100x2350
Total weight kg 4500 6500 6900
